Τροφοδοτικά

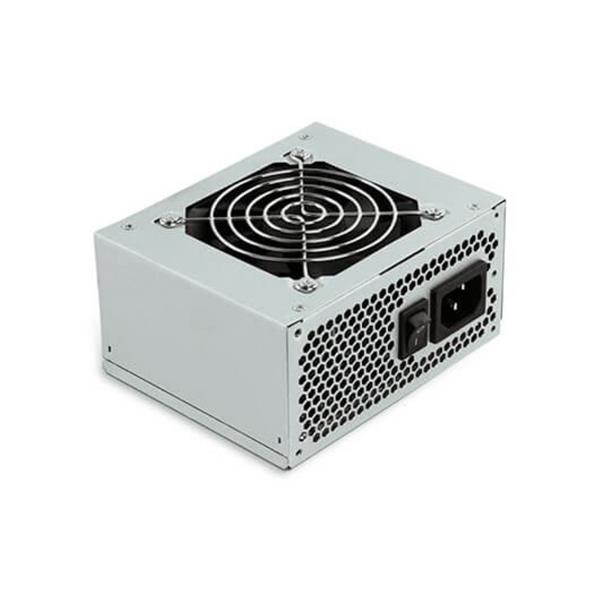

SOURCE SFX 500W TOOQ EP-II TQEP-500S-SFX SILVER VENT 80MM SAFETY + TQEP-500S-SFX SOURCE SFX 500W TOOQ EP-II TQEP-500S-SFX SILVER VENT 80MM SAFETY + TQEP-500S-SFX

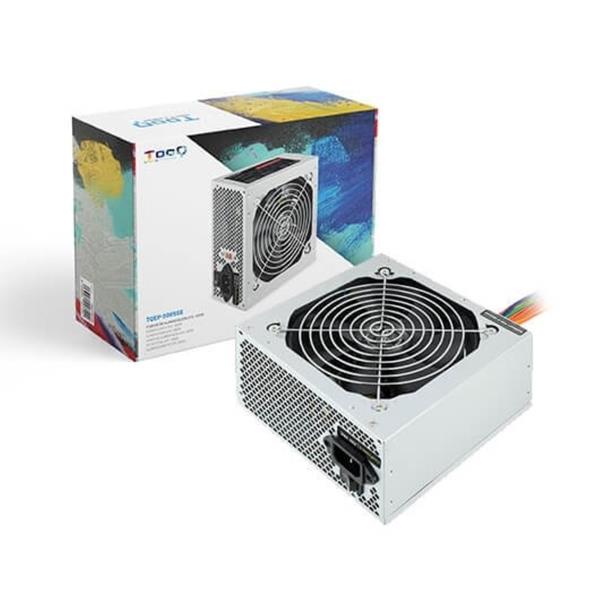

ATX POWER 500W TOOQ EP-II TQEP-500SSE SILVER VENT 120MM SAFETY + TQEP-500SSE SUPPLY ATX 500W TOOQ EP-II TQEP-500SSE SILVER VENT 120MM SAFETY + TQEP-500SSE

POWER SUPPLY MICRO-ATX 500W L-Link SOURCE MICRO-ATX 500W L-Link CABLE INCLUDED FOOD VENT 80X80 2XSATA 2XIDE LL-PS-MICRO500-CAB

Technical overview Power supply type Office Series ATX standard ATX V1.3 Connectors 20+4 pin mainboard 1x 35 cm 4 pin mainboard 12V 1x 35 cm PCI-Express - SATA 4 (2x 40 / 2x 55 cm) PATA 2 (2x 70 cm) FDD 1x 80 cm Mark of conformity TÜV, CE Fan 120 mm PFC passive Dimension h x w x d 87 x 150 x 140 mm Weight (retail) 1,366 kg Power rating 420W max. / peak +3,3V 16A +5V 16A -5V 0,5A +12V 15A Standby consumption 0,26W - ErP 2013 Temperature control for case fan yes Security circuitry OVP = Over-Voltage Protection OPP = Over-Power Protection SCP = Short-Circuit Protection UVP = Under-Voltage Protection Multirange (110V/220V) no Haswell compatible yes Barcode 4260070121067 Manufacturer code LC420H-12 V1.3

Technical overview Power supply type Office Series ATX standard ATX V2.31 Connectors 20+4 pin mainboard 1x 40 cm 4+4 pin mainboard 12V 1x 40 cm PCI-Express 1x PCI-Express 6 pin 40 cm SATA 3 (2x 40 / 1x 55 cm) PATA 1x 70 cm FDD 1x 55 cm Mark of conformity TÜV, CE Fan 120 mm PFC active Dimension h x w x d 85 x 150 x 141 mm Weight (retail) 1,274 kg Power rating 350W max. / peak +3,3V 21A +5V 15A +12V1 11A +12V2 8A Efficiency up to 89,48% Standby consumption 0,21W - ErP 2013 Temperature control for case fan yes Security circuitry OVP = Over-Voltage Protection OPP = Over-Power Protection SCP = Short-Circuit Protection UVP = Under-Voltage Protection Multirange (110V/220V) no Haswell compatible yes Barcode 4260070124396 Manufacturer code LC420-12 V2.31

500W max. / peak 120mm fan 1x PCI-Express 6 pin connector Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry

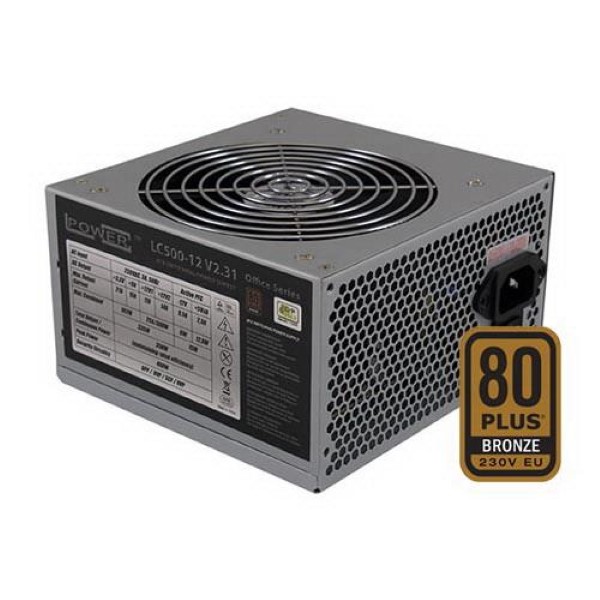

Technical overview Power supply type Office Series ATX standard ATX V2.31 Connectors 20+4 pin mainboard 1x 45 cm 4+4 pin mainboard 12V 1x 45 cm PCI-Express 1x PCI-Express 6 pin 45 cm SATA 4 (2x 45 / 2x 60 cm) PATA 2x 70 cm FDD 1x 85 cm Mark of conformity TÜV, CE Fan 120 mm PFC active Dimension h x w x d 85 x 150 x 140 mm Weight (retail) 1,378 kg Power rating 400W max. / peak +3,3V 21A +5V 15A +12V1 11A +12V2 14A Efficiency up to 88,63% Standby consumption 0,21W - ErP 2013 Temperature control for case fan yes Security circuitry OVP = Over-Voltage Protection OPP = Over-Power Protection SCP = Short-Circuit Protection UVP = Under-Voltage Protection Multirange (110V/220V) no Haswell compatible yes Barcode 4260070124402 Manufacturer code LC500-12 V2.31

P/N PS-TRS-0450NPCW**-2 Short P/N TRS-0450P-2 Model TRS-450AH2NK Type Intel ATX 12V 2.3 Max. Output Capacity 450W Color Black Dimension (H x W x D) 86mm x 150mm x 140mm PFC （Power Factor Correction） Active PFC Power Good Signal 100-500 msec Hold Up Time 16msec (minimum) within 60% load Input current 5A max Input Frequency Range 50 Hz - 60 Hz Input Voltage 230 Vac Operating Temperature 5℃ to +40℃ Operating Humidity 20% to 85%,non-condensing Storage Temperature -40 ℃ to +55 ℃ Storage Humidity 10% to 95%, non-condensing Cooling System 120mm Fan: 1800 R.P.M. ± 10% Efficiency 82-86% efficiency @ 20-100% load MTBF 100,000 hrs minimum Safety Approval CE/CB/TUV PCI-E Connector PCI-E 6+2pin x 2

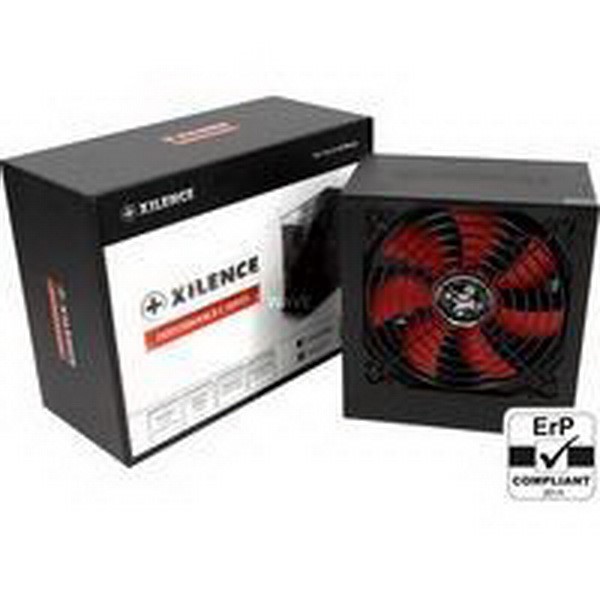

The Xilence Performance C 400W from Xilence Performance C series focuses on the essentials. Designed for office and home computers, the performance of C series delivers stable voltages with maximum efficiency (ErP2014). The fan works pleasantly quiet. Four integrated safety circuits always ensure a safe operation.

Performance AC Input: 200-240V / 3A Frequency: 47-63 Hz +5V: 15A +3,3V: 16A +5V & +3,3V combined: 90W +12V 1: 26A / 312W +12V 2: - +12V 1 & +12V 2 combined: N/A +12V 3: N/A +12V 4: N/A +12V 3 & +12V 4 combined: N/A P.F.: >0,9 -12V: 0,3A / 3,6W +5VSB: 2,5A / 12,5W Maximum Load: 350W Native cable 20+4PIN ATX: 1 SATA: 5 MOLEX: 3 Floppy: - 4PIN 12V: 1 8PIN 12V: - 8PIN (4+4) 12V: - 6PIN PCIe: - 8PIN (6+2) PCIe: 1 Features Spezification: ATX 12V 2.3 Form factor: PS II Efficiency: >85% Dimension (DxWxH): 140 mm x 150 mm x 87 mm PFC: Active PFC (0,9) Fan: 120mm silent fan Security: UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) Warranty: 24 Month

Model System Power 9 | 300W bulk Continuous power (W) 300 Peak power (W) - Form factor ATX 12V Version 2.4 Form factor EPS 12V - Modular cable management - Topology Double forward Wire-free design (DC-side) - Voltage (Vac) 200-240 Frequency (Hz) 50 Input current (A) 2,5 PFC active Power factor at 100% load >0.95 Compliant to Intel C6/C7 ✓ Power consumption in standby (W) <0.13 Average life time (h / 25°C) 100.000 Operating temperature up to (°C) 40

450W max. / peak 80 PLUS® BRONZE 230V EU certified Efficiency up to 89,14% Standby consumption: 0,16W 120mm fan 1x PCI-Express 6 pin, 1x PCI-Express 6+2 pin Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
