Raspberry Pi

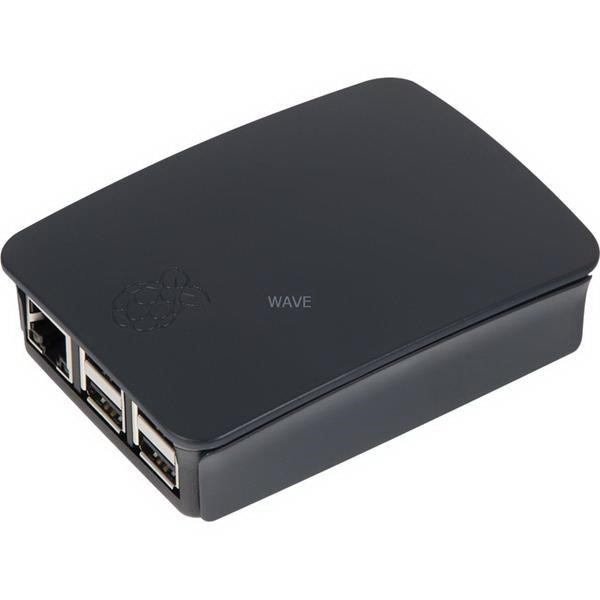

The Official Raspberry housing is a very robust housing made by Raspberry Pi, it is not only chic, but also high quality produziert.Es is very easy and quick to mount. The housing is suitable for Raspberry Pi 3B.

The Official Raspberry AC adapter has a USB port to operate a Raspberry Pi with it. It provides stable 2.5 A at 5.1 V output voltage and has sufficient reserves to cushion and voltage spikes. Delivery is included 1.5m Micro-USB cable. There are also four interchangeable power adapter - so you can use the power supply in the UK, Europe, Australia and the USA. The power supply uses the improved power management on the Raspberry Pi 3 optimal. It is compatible with all Raspberry Pi models, however.

The Raspberry Pi model A + 3 is the successor to the mini-computer Raspberry Pi model 3 A. Despite its extremely compact size, it is thanks to its 1.4 GHz quad-core processor Broadcom BCM2837B0, Cortex-A53 and the 512 MB large memory a full-fledged PC. It is suitable for a variety of applications, such as as the basis for a Web server, a media center PC or for control tasks. also includes a USB 2.0 interface and Wi-Fi 802.11 ac and Bluetooth 4.2 with Bluetooth Low Energy Facilities of the Raspberry Pi model A + 3. The integrated graphics has a HDMI and an AV output and is capable of video in Full HD (1080p) playback. The sound output is likewise carried out either through the HDMI or the AV output. The Raspberry Pi model A + 3 does not have a conventional hard disk connection, but instead has a microSD card reader, in which a memory card is inserted as a boot medium. Power is supplied via a Micro-USB port, as it is also used in modern mobile devices such as smartphones or tablet PCs.

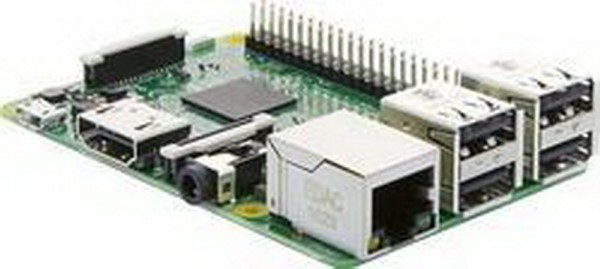

Type motherboard EAN 4250236812236 Manufacturer no. Raspberry PI 3 base integrated processor designation ARM Cortex-A53 number of CPU cores 4 clock speed 1200 MHz chipset Broadcom BCM2837 form factor proprietary use PC power adapter external Storage available 1 GB maximum 1 GB channels 1 Memory controller in the CPU Yes Terminals (external) USB 2.0 4 HDMI 1 Line-out 1 RJ-45 1 WIRELESS INTERNET ACCESS Yes graphic Broadcom Video Core IV sound Broadcom Audio LAN SMSC LAN9512

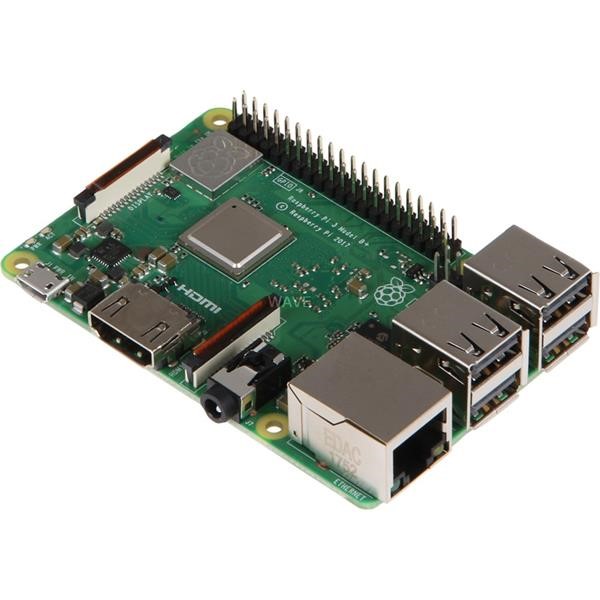

Type motherboard EAN 5060214370165 Manufacturer no. RPI-1373333 base integrated processor designation ARM Cortex-A53 number of CPU cores 4 clock speed 1400 MHz chipset Broadcom BCM2837B0 form factor proprietary use PC power adapter external Storage available 1 GB maximum 1 GB channels 1 Memory controller in the CPU Yes Terminals (external) USB 2.0 4 HDMI 1 Line-out 1 RJ-45 1 Bluetooth Yes WIRELESS INTERNET ACCESS Yes graphic Broadcom Video Core IV sound Broadcom Audio LAN Gigabit LAN additional Information It is recommended at least 2.5 amperes nominal power adapter.

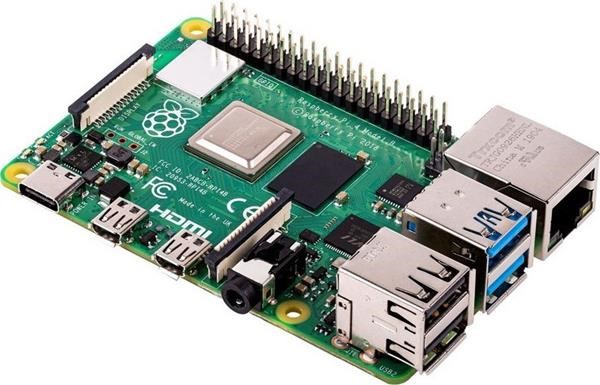

Type motherboard EAN 0765756931182 Manufacturer no. 1874653 base integrated processor description Broadcom BCM2711 Cortex-A72 (ARM v8) 64-bit SoC number of CPU cores 4 clock speed 1500 MHz chipset Broadcom BCM2711 form factor proprietary use PC power adapter external Storage available 4 GB maximum 4 GB Memory controller in the CPU Yes Terminals (external) A USB 3.2 (5 Gbit / s) 2 USB 2.0 2 Line-out 1 RJ-45 1 Bluetooth Yes WIRELESS INTERNET ACCESS Yes graphic Broadcom Video Core VI sound Broadcom Audio LAN Gigabit Ethernet Wi-Fi 5 (IEEE 802.11b / g / n / ac) features 2x micro HDMI ports (up to 4Kp60), 2-lane MIPI DSI display port, two-lane MIPI CSI camera port, 4-pin stereo audio and composite video port; H.265 (4Kp60 decode); H.264 (1080p60 decode, encode 1080p30); OpenGL ES 3.0 graphics standard 40-pin GPIO header completely backward compatible with older modules; Dimensions Width: 49 mm x depth / length: 85 mm
