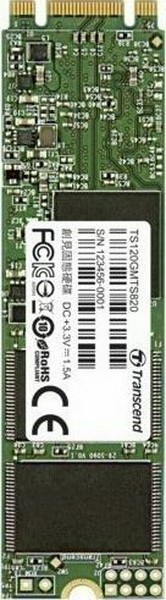

Appearance
Dimensions (Max.) 80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight (Max.) 8 g (0.28 oz)
Interface
Bus Interface
SATA III 6Gb/s
Storage
Flash Type
3D NAND flash
Capacity
120 GB/240 GB/480 GB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Read Speed (Max.) 560 MB/s
Write Speed (Max.) 510 MB/s
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Warranty
Certificate
CE/FCC/BSMI
Warranty
Three-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.
System Requirement
Operating System
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
