Μητρικές Κάρτες

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1 Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 4133 (OC) MHz Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. Audio Boost: Reward your ears with studio grade sound quality. X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Chipset AMD A320 CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4 Maximum CPU TDP (Thermal Design Power) : 95Watt MEMORY Support Dual Channel DDR4 2667/ 2400/ 2133/ 1866 MHz Support Non-ECC & ECC Un-buffered DIMM Memory modules 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP STORAGE 4 x SATA3 Connector Support SATA RAID: 0,1,10 LAN Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection CODEC Realtek ALC887 8-Channel HD Audio USB 2 x USB 3.1 Gen1 Port 1 x USB 3.1 Gen1 Header 2 x USB 2.0 Port 2 x USB 2.0 Header EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed) 2 x PCI-E 3.0 x1 Slot REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.1 Gen1 Port 2 x USB 2.0 Port 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz 1 x VGA Port, resolution up to 1920 x 1200 @60Hz 1 x LAN port 3 x Audio Jacks INTERNAL I/O 1 x USB 3.1 Gen1 Header 2 x USB 2.0 Header 4 x SATA3 6Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x Serial Port Header

PB Gigabyte 1151 H310M H M-ATX 2XDDR4 4XSATA6 1XUSB 3.2 1XUSB 2.0 GAH31MH-00-G PB Gigabyte 1151 H310M H M-ATX 2XDDR4 4XSATA6 1XUSB 3.2 1XUSB 2.0 GAH31MH-00-G

The MSI B450M PRO-VDH MAX based on the AMD-B450 chipset and supports AMD processors for socket AM4. It has four DDR4 slots for up to 64GB of memory. Other features of the PRO-B450M VDH MAX includes a CPU-dependent graphics solution, a PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots. In addition, the PRO-B450M VDH MAX has 8-channel sound, a Gigabit LAN interface and four SATA3-, an M.2 port and USB 3.0 ports.

Chipset AMD B450 CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4 Maximum CPU TDP (Thermal Design Power) : 105Watt MEMORY Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 8/16 GB DDR4 module STORAGE 4 x SATA3 Connectors (6Gb/s) : - Supports AHCI & RAID 0, 1, 10 1 x M.2 Key M 32Gb/s Connector: - Supports PCI-E & SATA SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge) - Supports SATA SSD (A-series APU - Bristol Ridge) LAN Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection CODEC Realtek ALC887 7.1-Channel Audio USB 6 x USB 3.1 Gen1 Ports (5Gb/s) (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers) EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot 2 x PCI-E 2.0 x1 Slots REAR I/O 1 x PS/2 Keyboard/Mouse 4 x USB 3.1 Gen1 (5Gb/s) Ports 2 x USB 2.0 Ports 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN port 3 x Audio Jacks INTERNAL I/O 1 x USB 3.1 Gen1 Header(5Gb/s) (each header supports 2 USB 3.1 Gen1 ports) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA3 6Gb/s Connectors 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header

Supports AMD Ryzen™ & 7th Generation A-series/ Athlon™ Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support High Quality Audio Capacitors and Audio Noise Guard Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers GIGABYTE™ UEFI BIOS CPU AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor Chipset AMD A320 Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules * Actual support may vary by CPU. Onboard Graphics Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Audio Realtek® ALC887 codec LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 stand Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10

Supports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socket Supports DDR4 Memory, up to 2666MHz Audio Boost: Reward your ears with studio grade sound quality. EZ Debug LED: Easiest way to troubleshoot. X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. SOCKET 1151 CPU (MAX SUPPORT) i7 CHIPSET Intel® H310 Chipset DDR4 MEMORY 2666/ 2400/ 2133 MHz MEMORY CHANNEL Dual DIMM SLOTS 2 MAX MEMORY (GB) 32 PCI-EX16 1 PCI-E GEN Gen3 PCI-EX1 2 SATAIII 4 TPM (HEADER) 1 LAN 10/100/1000 USB 3.1 PORTS (FRONT) 2(Gen1, Type A) USB 3.1 PORTS (REAR) 2(Gen1, Type A) USB 2.0 PORTS (FRONT) 2 USB 2.0 PORTS (REAR) 4 SERIAL PORTS(FRONT) 1 AUDIO PORTS (REAR)Realtek® ALC887 Codec DVI-D 1 VGA 1 HDMI 1 DIRECTX 12 FORM FACTOR m-ATX OPERATING SYSTEM Support for Windows® 10 64-bit

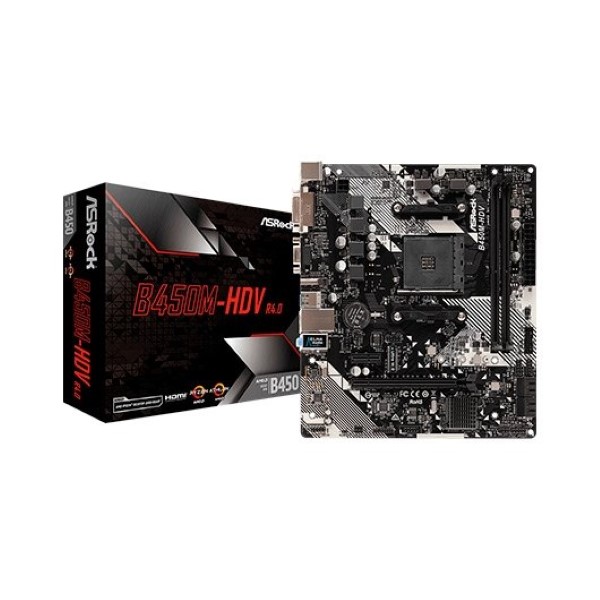

MOTHERBOARD Asrock AM4 B450M HDV R4.0 PB Asrock AM4 B450M HDV R4.0 M-ATX 2XDDR4 4XSATA3 6XUSB 3.1-HDMI-DVI-D 90-MXB9N0-A0UAYZ
