Trays-Adapters

Features • SATA to SATA interface • Plug & Play and Hot Swap • 2x Power connector (4pin and 15pin) • Compact construction (188 mm deep) • Antidust panel • All aluminium material • Front cooling fan • Keylock as power switch • "Blue Eye"–design • LED for power on and HDD access (Device Activity Signal) • Black, silver or beige

The DeLOCK 3.5 "Mobile Rack for 2x 2.5" SATA HDD can be installed into a free 3.5 "bay of your PC. It can use two 2.5" SATA hard drives are pushed into the frame. Due to the Hot Swap functionality, both SATA hard drives can be changed during operation (depending on the controller).

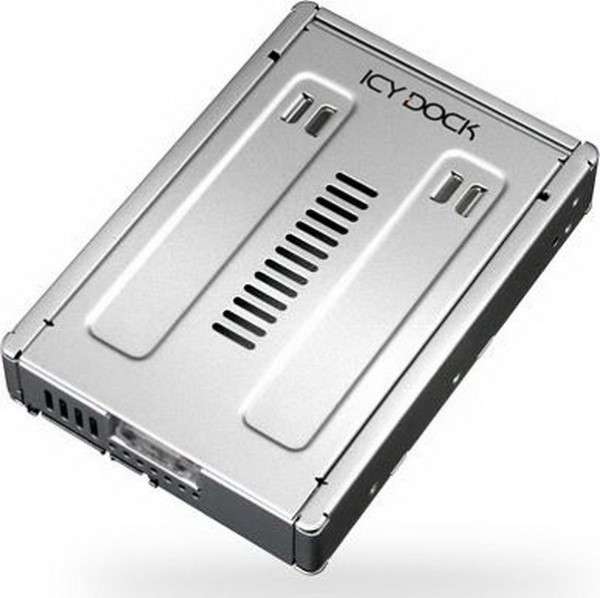

Product Name : Full Metal 2.5" to 3.5" HDD & SSD Converter Model Number : MB982SP-1S Color : Silver Support Drive Size : 2.5" HDD / SSD Compatible Drive Type : SATA or SAS ( Single Channel) Number of Drives : 1 Max Drive Height : 15mm Drive Bay : 1 x internal 3.5" SATA drive bay Host Interface : SATA Power Input : 15 pin SATA power connector Transfer Rate : Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity : No Limitation Drive Cooling : N/A RAID Function : N/A Structure / Material : Metal Support Hot-Swap : N/A Drive Security : N/A Product Dimension (L x W x H) : 146.6 x 101.6 x 25.4mm Product Weight : 356.3 g Shipping (Package) Weight : 402.4 g RAID Status LED Indicator : N/A Drive Activity LED Indication : N/A Package contents : 1 - Device, 1 - user manual, 4 - screws SATA Connector Insertion Rate : 10,000 Humidity : 5%~65% RH Opertating Temperature : 0°C to 60°C (32°F to 140°F) Storage Temperature : -35°C to 70°C (-31°F to 158°F) Compliance : CE, RoHS, REACH Warranty : 3 years

The exchangeable frame Chieftec CBP 2131SAS can hold two free 5.25 "bays for up to three 3.5" SATA hard drives. The CBP 2131SAS supports SATA 3 hard drives and features a 70-mm fan on the rear panel.

Product Name : Hot-Swap 3.5" / 2.5" SAS & SATA HDD Backplane Module Model Number : MB153SP-B Color : Black Support Drive Size : 3.5" HDD Compatible Drive Type : SATA / SAS (Support Single Channel SAS) Number of Drives : 3 Max Drive Height : 26.1mm Drive Bay : 2 x 5.25" Device bay Host Interface : 3 x 7pin SATA Power Input : 2 x 15 pin SATA power connector Transfer Rate : Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity : No Limitation Drive Cooling : 80 x 80 x 25mm Fan RAID Function : N/A Structure / Material : Metal body with partial plastic Support Hot-Swap : Yes Drive Security : N/A Product Dimension (L x W x H) : 200.4 x 146.4 x 85.8mm Product Weight : 912g Shipping (Package) Weight : 1210g RAID Status LED Indicator : N/A Drive Activity LED Indication : Drive power: solid green; HDD access: flashing green Package contents : 1 - Device, 1 - user manual, 32 - screw Product Name : 3 x 3.5” HDD in 2 x 5.25” Bay Hot Swap SATA 6Gbps HDD Rack/ Cage/ Module SATA Connector Insertion Rate : 10,000 Humidity : 5%~65% RH Opertating Temperature : 0°C to 60°C (32°F to 140°F) Storage Temperature : -35°C to 70°C (-31°F to 158°F) Compliance : CE, RoHS, REACH Warranty : 3 years
